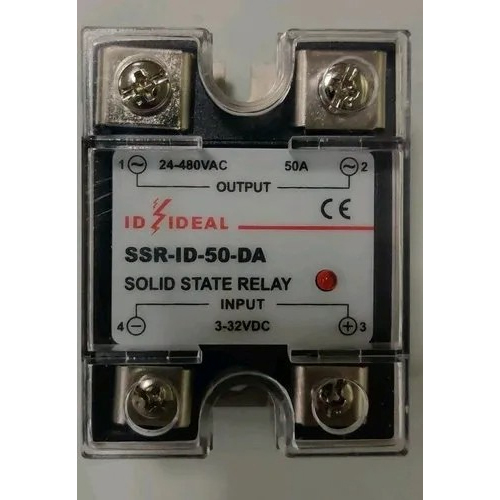

IDEAL Solid State Relay ( SSR )

IDEAL Solid State Relay ( SSR ) Specification

Coil Power
Max 1.2W

Contact Material
Semiconductor

Working Temperature
-20C to +70C

Protect Feature
Overload Protection

Mechanical Life
100,000 cycles

Coil Voltage
4-32V DC

Ambient Temperature
-30C to +80C

Contact Resistance
100m

Power Consumption
Max 1.5W

Contact Form
SPST (Normally Open)

Dielectiric Strength
2500VAC 1 min

Product Type
Solid State Relay (SSR)

Insulation Resistance
1000 M

Theory
Solid State

Usage
Industrial Automation

Contact Load
25A

Operate Time
<10ms

Terminal Type
Screw Type

Rated Voltage
240V AC

Supply Terminal
Dual Terminal

Size
Standard (Refer to dimension)

Color
Black & Grey

Dimension (L*W*H)
57mm x 44mm x 24mm

Weight
Approx 110g

Response Time
Turn-on <10ms, Turn-off <10ms

Mounting Type
Panel Mount

Input Current
7-25mA

Control Method
Zero Crossing

Isolation Method
Photoelectric Isolation

Load Voltage Range
24-380V AC

Application
Motor, Heater, Lamp Control

IDEAL Solid State Relay ( SSR ) Trade Information

Minimum Order Quantity
50 Pieces

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

IDEAL Solid State Relay ( SSR ) About

Order the IDEAL Solid State Relay (SSR) now for enviable savings and first-class performance. Engineered for valorous reliability in industrial automation, this SSR boasts a robust load voltage range of 24-380V AC and a rated voltage of 240V AC-perfect for motor, heater, and lamp control. The zero crossing and photoelectric isolation methods guarantee secure operation and rapid response times under 10ms. Its durable, dual-terminal, panel mount design, with overload protection, ensures longevity and seamless integration. Jump on the opportunity to enhance your operations with this resilient, high-end unit.

IDEAL SSR: Designed for Versatile Industrial Applications

The IDEAL Solid State Relay is perfectly suited for use in diverse industrial settings, from motor and heater regulation to lamp control. Its rugged, panel-mount structure with screw-type terminals offers effortless installation and steadfast mounting. With zero crossing and photoelectric isolation, this SSR ensures stable and noise-resistant switching. Employ it in automation systems requiring precision and reliability for superior operational output, even under demanding environmental and electrical conditions.

Sample Availability, Supply Capacity, and Certification Details

Samples of the IDEAL SSR can be provided to ensure customer satisfaction before bulk expenditure. With valorous supply ability, timely goods transport and secure packaging are prioritized to maintain product integrity. The relay adheres to first-class industry certifications, affirming its quality and safety standards. Domestic and global buyers benefit from streamlined logistics, enabling rapid order processing and expert handling through each phase of product delivery.

FAQ's of IDEAL Solid State Relay ( SSR ):

Q: How does the photoelectric isolation method benefit the IDEAL SSR?

A: Photoelectric isolation in the IDEAL SSR ensures electrical separation between input and output, protecting sensitive control circuits from voltage spikes and electrical noise.

Q: What applications are most suitable for the IDEAL Solid State Relay?

A: This relay is ideal for industrial automation tasks like controlling motors, heaters, and lamps-especially where fast response and longevity are required.

Q: When should I consider choosing a solid state relay over an electromechanical one?

A: Select a solid state relay like the IDEAL SSR when you need swift response times, silent operation, high cycle life, and maintenance-free switching in automated industrial environments.

Q: Where is the IDEAL SSR best mounted for optimal performance?

A: It is designed for panel mounting, enabling secure installation and easy integration into control enclosures typical of industrial automation systems.

Q: What is the process for ordering and receiving samples of the IDEAL SSR?

A: Contact the supplier or trader to request a sample; secure packaging and efficient goods transport ensure prompt and safe delivery to your location in India or abroad.

Q: How does overload protection enhance the device's reliability?

A: Overload protection safeguards the SSR and connected equipment by automatically disconnecting loads during excessive current conditions, prolonging operational life and preventing failure.
